grape::MessageManagerBase Class Reference

MessageManagerBase is the base class for message managers. More...

#include <message_manager_base.h>

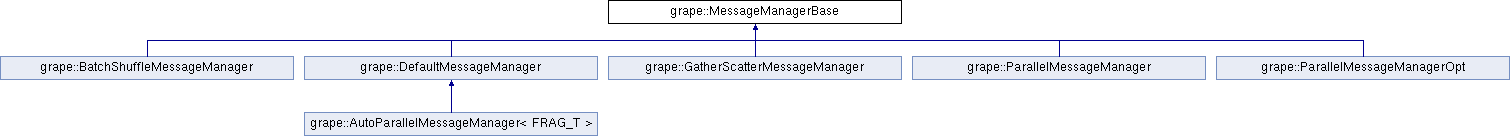

Inheritance diagram for grape::MessageManagerBase:

Public Member Functions
virtual void	Init (MPI_Comm comm)=0
	Initialize message manager. More...
virtual void	Start ()=0
	This function will be called before Init step of applications.
virtual void	StartARound ()=0
	This function will be called before each evaluation step of applications.
virtual void	FinishARound ()=0
	This function will be called after each evaluation step of applications.
virtual void	Finalize ()=0
	This function will be called after the evaluation of applications.
virtual bool	ToTerminate ()=0
	This function will be called by worker after a step to determine whether evaluation is terminated. More...
virtual size_t	GetMsgSize () const =0
	Get size of messages sent by this message manager instance. The return value is valid only after FinishARound is called. StartARound will reset the value to zero. More...
virtual void	ForceContinue ()=0
	Force continue to evaluate one more round even if all workers stop sending message. More...
virtual void	ForceTerminate (const std::string &info="")=0
	Force all workers terminate after this round of evaluation. More...
virtual const TerminateInfo &	GetTerminateInfo () const =0
	This function is called to get gathered termination info after evaluation finished. More...

Detailed Description

MessageManagerBase is the base class for message managers.

Note

: The pure virtual functions in the class work as interfaces, instructing sub-classes to implement. The override functions in the derived classes would be invoked directly, not via virtual functions.

Member Function Documentation

ForceContinue()

virtual void grape::MessageManagerBase::ForceContinue ( )

pure virtual

Force continue to evaluate one more round even if all workers stop sending message.

This function can be called by applications.

Implemented in grape::ParallelMessageManagerOpt, grape::ParallelMessageManager, grape::GatherScatterMessageManager, grape::DefaultMessageManager, grape::BatchShuffleMessageManager, and grape::AutoParallelMessageManager< FRAG_T >.

ForceTerminate()

virtual void grape::MessageManagerBase::ForceTerminate ( const std::string &  info = "" )

pure virtual

Force all workers terminate after this round of evaluation.

This function can be called by applications.

Parameters

info	Termination info.

Implemented in grape::GatherScatterMessageManager, grape::ParallelMessageManagerOpt, grape::ParallelMessageManager, grape::DefaultMessageManager, and grape::BatchShuffleMessageManager.

GetMsgSize()

virtual size_t grape::MessageManagerBase::GetMsgSize ( ) const

pure virtual

Get size of messages sent by this message manager instance. The return value is valid only after FinishARound is called. StartARound will reset the value to zero.

Returns

Size of messages sent by this message manager instance.

Implemented in grape::ParallelMessageManagerOpt, grape::ParallelMessageManager, grape::GatherScatterMessageManager, grape::DefaultMessageManager, and grape::BatchShuffleMessageManager.

GetTerminateInfo()

virtual const TerminateInfo& grape::MessageManagerBase::GetTerminateInfo ( ) const

pure virtual

This function is called to get gathered termination info after evaluation finished.

Returns

Termination info.

Implemented in grape::ParallelMessageManagerOpt, grape::ParallelMessageManager, grape::GatherScatterMessageManager, grape::DefaultMessageManager, and grape::BatchShuffleMessageManager.

Init()

virtual void grape::MessageManagerBase::Init ( MPI_Comm  comm )

pure virtual

Initialize message manager.

Parameters

comm	MPI_Comm object.

Implemented in grape::ParallelMessageManagerOpt, grape::ParallelMessageManager, grape::GatherScatterMessageManager, grape::DefaultMessageManager, and grape::BatchShuffleMessageManager.

ToTerminate()

virtual bool grape::MessageManagerBase::ToTerminate ( )

pure virtual

This function will be called by worker after a step to determine whether evaluation is terminated.

Returns

Whether evaluation is terminated.

Implemented in grape::ParallelMessageManagerOpt, grape::ParallelMessageManager, grape::GatherScatterMessageManager, grape::DefaultMessageManager, grape::BatchShuffleMessageManager, and grape::AutoParallelMessageManager< FRAG_T >.
