IEdgecutFragment defines the interfaces of fragments with edgecut. To learn more about edge-cut and vertex-cut, please refers to https://spark.apache.org/docs/1.6.2/graphx-programming-guide.html#optimized-representation. More...

#include <edgecut_fragment_base.h>

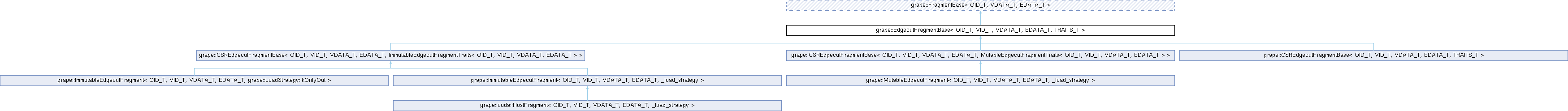

Inheritance diagram for grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >:

Public Types
using	base_t = FragmentBase< OID_T, VDATA_T, EDATA_T >

using	vid_t = VID_T

using	vertex_t = Vertex< VID_T >

using	fragment_adj_list_t = typename TRAITS_T::fragment_adj_list_t

using	fragment_const_adj_list_t = typename TRAITS_T::fragment_const_adj_list_t

using	vertices_t = typename TRAITS_T::vertices_t

using	internal_id_t = typename InternalOID< OID_T >::type

using	inner_vertices_t = typename TRAITS_T::inner_vertices_t

using	outer_vertices_t = typename TRAITS_T::outer_vertices_t

using	sub_vertices_t = typename TRAITS_T::sub_vertices_t

using	mirror_vertices_t = typename TRAITS_T::mirror_vertices_t

Public Member Functions
VertexMap< OID_T, VID_T > &	GetVertexMap ()

const VertexMap< OID_T, VID_T > &	GetVertexMap () const

const vertices_t &	Vertices () const
	Get all vertices referenced to this fragment.

size_t	GetVerticesNum () const override
	Returns the number of vertices in this fragment.

size_t	GetTotalVerticesNum () const override
	Returns the number of vertices in the entire graph.

bool	GetVertex (const OID_T &oid, Vertex< VID_T > &v) const
	Get a vertex with original ID vid.

OID_T	GetId (const Vertex< VID_T > &v) const
	Get the original ID of a vertex.

internal_id_t	GetInternalId (const Vertex< VID_T > &v) const

OID_T	Gid2Oid (VID_T gid) const

fid_t	GetFragId (const Vertex< VID_T > &u) const
	Get the ID of fragment the input vertex belongs to.

virtual const VDATA_T &	GetData (const Vertex< VID_T > &v) const =0
	Get the data of a vertex.

virtual void	SetData (const Vertex< VID_T > &v, const VDATA_T &val)=0
	Set the data of a vertex.

virtual bool	HasChild (const Vertex< VID_T > &v) const =0
	Check if vertex v has a child, that is, existing an edge v->u.

virtual bool	HasParent (const Vertex< VID_T > &v) const =0
	Check if vertex v has a parent, that is, existing an edge u->v.

virtual int	GetLocalInDegree (const Vertex< VID_T > &v) const =0
	Returns the in-degree of vertex v in this fragment.

virtual int	GetLocalOutDegree (const Vertex< VID_T > &v) const =0
	Returns the out-degree of vertex v in this fragment.<Paste>

virtual AdjList< VID_T, EDATA_T >	GetIncomingAdjList (const Vertex< VID_T > &v)=0
	Returns the incoming adjacent vertices of v.

virtual ConstAdjList< VID_T, EDATA_T >	GetIncomingAdjList (const Vertex< VID_T > &v) const =0

virtual fragment_adj_list_t	GetIncomingAdjList (const Vertex< VID_T > &v, fid_t fid)=0

virtual fragment_const_adj_list_t	GetIncomingAdjList (const Vertex< VID_T > &v, fid_t fid) const =0

virtual AdjList< VID_T, EDATA_T >	GetOutgoingAdjList (const Vertex< VID_T > &v)=0
	Returns the outgoing adjacent vertices of v.

virtual ConstAdjList< VID_T, EDATA_T >	GetOutgoingAdjList (const Vertex< VID_T > &v) const =0

virtual fragment_adj_list_t	GetOutgoingAdjList (const Vertex< VID_T > &v, fid_t fid)=0

virtual fragment_const_adj_list_t	GetOutgoingAdjList (const Vertex< VID_T > &v, fid_t fid) const =0

VID_T	GetInnerVerticesNum () const
	Returns the number of inner vertices in this fragment.

VID_T	GetOuterVerticesNum () const
	Returns the number of outer vertices in this fragment.

const inner_vertices_t &	InnerVertices () const
	Returns the vertex range of inner vertices in this fragment.

const outer_vertices_t &	OuterVertices () const
	Returns the vertex range of outer vertices in this fragment.

const sub_vertices_t &	OuterVertices (fid_t fid) const

const mirror_vertices_t &	MirrorVertices (fid_t fid) const

bool	IsInnerVertex (const Vertex< VID_T > &v) const
	Check if vertex v is inner vertex of this fragment.

bool	IsOuterVertex (const Vertex< VID_T > &v) const
	Check if vertex v is outer vertex of this fragment.

bool	GetInnerVertex (const OID_T &oid, Vertex< VID_T > &v) const
	Get a inner vertex with original ID vid.

OID_T	GetInnerVertexId (vertex_t v) const
	Get the original ID of an inner vertex.

OID_T	GetOuterVertexId (vertex_t v) const
	Get the original ID of an outer vertex.

bool	InnerVertexGid2Vertex (VID_T gid, Vertex< VID_T > &v) const
	Convert from global id to an inner vertex handle.

bool	OuterVertexGid2Vertex (VID_T gid, Vertex< VID_T > &v) const
	Convert from global id to an outer vertex handle.

virtual VID_T	GetOuterVertexGid (vertex_t v) const =0
	Convert from inner vertex handle to its global id.

VID_T	GetInnerVertexGid (vertex_t v) const
	Convert from outer vertex handle to its global id.

virtual DestList	IEDests (const Vertex< VID_T > &v) const =0
	Return the incoming edge destination fragment ID list of a inner vertex.

virtual size_t	IEDestsSize () const =0

virtual DestList	OEDests (const Vertex< VID_T > &v) const =0
	Return the outgoing edge destination fragment ID list of a inner vertex.

virtual size_t	OEDestsSize () const =0

virtual DestList	IOEDests (const Vertex< VID_T > &v) const =0
	Return the edge destination fragment ID list of a inner vertex.

virtual size_t	IOEDestsSize () const =0

virtual AdjList< VID_T, EDATA_T >	GetIncomingInnerVertexAdjList (const Vertex< VID_T > &v)=0
	Returns the incoming adjacent inner vertices of v.

virtual ConstAdjList< VID_T, EDATA_T >	GetIncomingInnerVertexAdjList (const Vertex< VID_T > &v) const =0
	Returns the incoming adjacent inner vertices of v.

virtual AdjList< VID_T, EDATA_T >	GetIncomingOuterVertexAdjList (const Vertex< VID_T > &v)=0
	Returns the incoming adjacent outer vertices of v.

virtual ConstAdjList< VID_T, EDATA_T >	GetIncomingOuterVertexAdjList (const Vertex< VID_T > &v) const =0
	Returns the incoming adjacent outer vertices of v.

virtual AdjList< VID_T, EDATA_T >	GetOutgoingInnerVertexAdjList (const Vertex< VID_T > &v)=0
	Returns the outgoing adjacent inner vertices of v.

virtual ConstAdjList< VID_T, EDATA_T >	GetOutgoingInnerVertexAdjList (const Vertex< VID_T > &v) const =0
	Returns the outgoing adjacent inner vertices of v.

virtual AdjList< VID_T, EDATA_T >	GetOutgoingOuterVertexAdjList (const Vertex< VID_T > &v)=0
	Returns the outgoing adjacent outer vertices of v.

virtual ConstAdjList< VID_T, EDATA_T >	GetOutgoingOuterVertexAdjList (const Vertex< VID_T > &v) const =0
	Returns the outgoing adjacent outer vertices of v.

bool	Gid2Vertex (const vid_t &gid, vertex_t &v) const
	Convert from global id to a vertex handle.

vid_t	Vertex2Gid (const vertex_t &v) const
	Convert from vertex handle to its global id.

fid_t	fid () const
	Returns the ID of this fragment.

fid_t	fnum () const
	Returns the number of fragments.

Public Member Functions inherited from grape::FragmentBase< OID_T, VDATA_T, EDATA_T >
bool	directed () const
	Returns true if the fragment is directed, false otherwise.

fid_t	fid () const
	Returns the ID of this fragment.

fid_t	fnum () const
	Returns the number of fragments.

virtual size_t	GetEdgeNum () const =0
	Returns the number of edges in this fragment.

virtual void	PrepareToRunApp (const CommSpec &comm_spec, PrepareConf conf, const ParallelEngineSpec &pe_spec)=0
	For some kind of applications, specific data structures will be generated.

Static Public Attributes
static constexpr FragmentType	fragment_type = FragmentType::kEdgeCut

Protected Member Functions
void	init (fid_t fid, bool directed, std::unique_ptr< VertexMap< OID_T, VID_T > > &&vm_ptr)

bool	IsInnerVertexGid (VID_T gid) const

bool	IsInnerVertexLid (VID_T lid) const

bool	Gid2Lid (VID_T gid, VID_T &lid) const

bool	InnerVertexGid2Lid (VID_T gid, VID_T &lid) const

virtual bool	OuterVertexGid2Lid (VID_T gid, VID_T &lid) const =0

void	initMirrorInfo (const CommSpec &comm_spec)

template<typename IOADAPTOR_T >
void	serialize (std::unique_ptr< IOADAPTOR_T > &writer)

template<typename IOADAPTOR_T >
void	deserialize (std::unique_ptr< IOADAPTOR_T > &reader)

Protected Member Functions inherited from grape::FragmentBase< OID_T, VDATA_T, EDATA_T >
void	init (fid_t fid, fid_t fnum, bool directed)

template<typename IOADAPTOR_T >
void	serialize (std::unique_ptr< IOADAPTOR_T > &writer)

template<typename IOADAPTOR_T >
void	deserialize (std::unique_ptr< IOADAPTOR_T > &reader)

Protected Attributes
VID_T	ivnum_

inner_vertices_t	inner_vertices_

outer_vertices_t	outer_vertices_

vertices_t	vertices_

std::vector< sub_vertices_t >	outer_vertices_of_frag_

std::vector< mirror_vertices_t >	mirrors_of_frag_

std::unique_ptr< VertexMap< OID_T, VID_T > >	vm_ptr_

IdParser< VID_T >	id_parser_

Protected Attributes inherited from grape::FragmentBase< OID_T, VDATA_T, EDATA_T >
fid_t	fid_

fid_t	fnum_

bool	directed_

Detailed Description

template<typename OID_T, typename VID_T, typename VDATA_T, typename EDATA_T, typename TRAITS_T>
class grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >

IEdgecutFragment defines the interfaces of fragments with edgecut. To learn more about edge-cut and vertex-cut, please refers to https://spark.apache.org/docs/1.6.2/graphx-programming-guide.html#optimized-representation.

If we have an edge a->b cutted by the partitioner, and a is in frag_0, and b in frag_1. Then: a->b is a crossing edge, a is an inner_vertex in frag_0, b is an outer_vertex in frag_0.

Template Parameters

OID_T
VID_T
VDATA_T
EDATA_T
TRAITS_T

Member Function Documentation

◆ fid()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

fid_t grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::fid ( ) const

inline

Returns the ID of this fragment.

Returns: The ID of this fragment.

◆ fnum()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

fid_t grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::fnum ( ) const

inline

Returns the number of fragments.

Returns: The number of fragments.

◆ GetData()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual const VDATA_T & grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetData ( const Vertex< VID_T > & v ) const

pure virtual

Get the data of a vertex.

Parameters

v	Input vertex.

Returns: Data on it.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetFragId()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

fid_t grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetFragId ( const Vertex< VID_T > & u ) const

inline

Get the ID of fragment the input vertex belongs to.

Parameters

u	Input vertex.

Returns: Its fragment ID.

◆ GetId()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

OID_T grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetId ( const Vertex< VID_T > & v ) const

inline

Get the original ID of a vertex.

Parameters

v	Input vertex.

Returns: Its original ID.

◆ GetIncomingAdjList() [1/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual ConstAdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetIncomingAdjList ( const Vertex< VID_T > & v ) const

pure virtual

◆ GetIncomingAdjList() [2/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual AdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetIncomingAdjList ( const Vertex< VID_T > & v )

pure virtual

Returns the incoming adjacent vertices of v.

Parameters

v	Input vertex.

Returns: The incoming adjacent vertices of v.

◆ GetIncomingInnerVertexAdjList() [1/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual ConstAdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetIncomingInnerVertexAdjList ( const Vertex< VID_T > & v ) const

pure virtual

Returns the incoming adjacent inner vertices of v.

Parameters

v	Input vertex.

Returns: The incoming adjacent inner vertices of v.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetIncomingInnerVertexAdjList() [2/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual AdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetIncomingInnerVertexAdjList ( const Vertex< VID_T > & v )

pure virtual

Returns the incoming adjacent inner vertices of v.

Parameters

v	Input vertex.

Returns: The incoming adjacent inner vertices of v.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetIncomingOuterVertexAdjList() [1/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual ConstAdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetIncomingOuterVertexAdjList ( const Vertex< VID_T > & v ) const

pure virtual

Returns the incoming adjacent outer vertices of v.

Parameters

v	Input vertex.

Returns: The incoming adjacent outer vertices of v.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetIncomingOuterVertexAdjList() [2/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual AdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetIncomingOuterVertexAdjList ( const Vertex< VID_T > & v )

pure virtual

Returns the incoming adjacent outer vertices of v.

Parameters

v	Input vertex.

Returns: The incoming adjacent outer vertices of v.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetInnerVertex()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetInnerVertex	(	const OID_T &	oid,
		Vertex< VID_T > &	v
	)		const

inline

Get a inner vertex with original ID vid.

Parameters

vid	Original ID.
v	Got vertex.

Returns: True if find a inner vertex with original ID vid in this fragment, false otherwise.

◆ GetInnerVertexGid()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

VID_T grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetInnerVertexGid ( vertex_t v ) const

inline

Convert from outer vertex handle to its global id.

Parameters

v	Input vertex handle.

Returns: Global id of the vertex.

◆ GetInnerVertexId()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

OID_T grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetInnerVertexId ( vertex_t v ) const

inline

Get the original ID of an inner vertex.

Parameters

v	Input vertex.

Returns: The original ID.

◆ GetInnerVerticesNum()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

VID_T grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetInnerVerticesNum ( ) const

inline

Returns the number of inner vertices in this fragment.

Returns: The number of inner vertices in this fragment.

◆ GetLocalInDegree()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual int grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetLocalInDegree ( const Vertex< VID_T > & v ) const

pure virtual

Returns the in-degree of vertex v in this fragment.

Parameters

v	Input vertex.

Returns: In-degree of vertex v in this fragment.

Implemented in grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >.

◆ GetLocalOutDegree()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual int grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetLocalOutDegree ( const Vertex< VID_T > & v ) const

pure virtual

Returns the out-degree of vertex v in this fragment.<Paste>

Parameters

v	Input vertex.

Returns: Out-degree of vertex v in this fragment.

Implemented in grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >.

◆ GetOuterVertexGid()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual VID_T grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOuterVertexGid ( vertex_t v ) const

pure virtual

Convert from inner vertex handle to its global id.

Parameters

v	Input vertex handle.

Returns: Global id of the vertex.

Implemented in grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetOuterVertexId()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

OID_T grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOuterVertexId ( vertex_t v ) const

inline

Get the original ID of an outer vertex.

Parameters

v	Input vertex.

Returns: The original ID.

◆ GetOuterVerticesNum()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

VID_T grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOuterVerticesNum ( ) const

inline

Returns the number of outer vertices in this fragment.

Returns: The number of outer vertices in this fragment.

◆ GetOutgoingAdjList() [1/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual ConstAdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOutgoingAdjList ( const Vertex< VID_T > & v ) const

pure virtual

◆ GetOutgoingAdjList() [2/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual AdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOutgoingAdjList ( const Vertex< VID_T > & v )

pure virtual

Returns the outgoing adjacent vertices of v.

Parameters

v	Input vertex.

Returns: The outgoing adjacent vertices of v.

◆ GetOutgoingInnerVertexAdjList() [1/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual ConstAdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOutgoingInnerVertexAdjList ( const Vertex< VID_T > & v ) const

pure virtual

Returns the outgoing adjacent inner vertices of v.

Parameters

v	Input vertex.

Returns: The outgoing adjacent inner vertices of v.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetOutgoingInnerVertexAdjList() [2/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual AdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOutgoingInnerVertexAdjList ( const Vertex< VID_T > & v )

pure virtual

Returns the outgoing adjacent inner vertices of v.

Parameters

v	Input vertex.

Returns: The outgoing adjacent inner vertices of v.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetOutgoingOuterVertexAdjList() [1/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual ConstAdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOutgoingOuterVertexAdjList ( const Vertex< VID_T > & v ) const

pure virtual

Returns the outgoing adjacent outer vertices of v.

Parameters

v	Input vertex.

Returns: The outgoing adjacent outer vertices of v.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetOutgoingOuterVertexAdjList() [2/2]

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual AdjList< VID_T, EDATA_T > grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetOutgoingOuterVertexAdjList ( const Vertex< VID_T > & v )

pure virtual

Returns the outgoing adjacent outer vertices of v.

Parameters

v	Input vertex.

Returns: The outgoing adjacent outer vertices of v.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ GetTotalVerticesNum()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

size_t grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetTotalVerticesNum ( ) const

inlineoverridevirtual

Returns the number of vertices in the entire graph.

Returns: The number of vertices in the entire graph.

Implements grape::FragmentBase< OID_T, VDATA_T, EDATA_T >.

◆ GetVertex()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetVertex	(	const OID_T &	oid,
		Vertex< VID_T > &	v
	)		const

inline

Get a vertex with original ID vid.

Parameters

vid	Original ID.
v	Got vertex.

Returns: If find the vertex in this fragment, return true. Otherwise, return false.

◆ GetVerticesNum()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

size_t grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::GetVerticesNum ( ) const

inlineoverridevirtual

Returns the number of vertices in this fragment.

Returns: The number of vertices in this fragment.

Implements grape::FragmentBase< OID_T, VDATA_T, EDATA_T >.

◆ Gid2Vertex()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::Gid2Vertex	(	const vid_t &	gid,
		vertex_t &	v
	)		const

inline

Convert from global id to a vertex handle.

Parameters

gid	Input global id.
v	Output vertex handle.

Returns: True if exists a vertex with global id as gid in this fragment, false otherwise.

◆ HasChild()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::HasChild ( const Vertex< VID_T > & v ) const

pure virtual

Check if vertex v has a child, that is, existing an edge v->u.

Parameters

v	Input vertex.

Returns: True if vertex v has a child, false otherwise.

Implemented in grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >.

◆ HasParent()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::HasParent ( const Vertex< VID_T > & v ) const

pure virtual

Check if vertex v has a parent, that is, existing an edge u->v.

Parameters

v	Input vertex.

Returns: True if vertex v has a parent, false otherwise.

Implemented in grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >.

◆ IEDests()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual DestList grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::IEDests ( const Vertex< VID_T > & v ) const

pure virtual

Return the incoming edge destination fragment ID list of a inner vertex.

Note: : For inner vertex v of fragment-0, if outer vertex u and w are parents of v. u belongs to fragment-1 and w belongs to fragment-2, then 1 and 2 are in incoming edge destination fragment ID list of v.; : This method is encapsulated in the corresponding sending message API, SendMsgThroughIEdges, so it is not recommended to use this method directly in application programs.

Parameters

v	Input vertex.

Returns: The incoming edge destination fragment ID list.

Implemented in grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >.

◆ InnerVertexGid2Vertex()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::InnerVertexGid2Vertex	(	VID_T	gid,
		Vertex< VID_T > &	v
	)		const

inline

Convert from global id to an inner vertex handle.

Parameters

gid	Input global id.
v	Output vertex handle.

Returns: True if exists an inner vertex of this fragment with global id as gid, false otherwise.

◆ InnerVertices()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

const inner_vertices_t & grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::InnerVertices ( ) const

inline

Returns the vertex range of inner vertices in this fragment.

Returns: The vertex range of inner vertices in this fragment.

◆ IOEDests()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual DestList grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::IOEDests ( const Vertex< VID_T > & v ) const

pure virtual

Return the edge destination fragment ID list of a inner vertex.

Note: : For inner vertex v of fragment-0, if outer vertex u and w are neighbors of v. u belongs to fragment-1 and w belongs to fragment-2, then 1 and 2 are in outgoing edge destination fragment ID list of v.; : This method is encapsulated in the corresponding sending message API, SendMsgThroughEdges, so it is not recommended to use this method directly in application programs.

Parameters

v	Input vertex.

Returns: The edge destination fragment ID list.

Implemented in grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >.

◆ IsInnerVertex()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::IsInnerVertex ( const Vertex< VID_T > & v ) const

inline

Check if vertex v is inner vertex of this fragment.

Parameters

v	Input vertex.

Returns: True if vertex v is an inner vertex, false otherwise.

◆ IsOuterVertex()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::IsOuterVertex ( const Vertex< VID_T > & v ) const

inline

Check if vertex v is outer vertex of this fragment.

Parameters

v	Input vertex.

Returns: True if vertex v is outer vertex, false otherwise.

◆ OEDests()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual DestList grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::OEDests ( const Vertex< VID_T > & v ) const

pure virtual

Return the outgoing edge destination fragment ID list of a inner vertex.

Note: : For inner vertex v of fragment-0, if outer vertex u and w are children of v. u belongs to fragment-1 and w belongs to fragment-2, then 1 and 2 are in outgoing edge destination fragment ID list of v.; : This method is encapsulated in the corresponding sending message API, SendMsgThroughOEdges, so it is not recommended to use this method directly in application programs.

Parameters

v	Input vertex.

Returns: The outgoing edge destination fragment ID list.

Implemented in grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >.

◆ OuterVertexGid2Vertex()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

bool grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::OuterVertexGid2Vertex	(	VID_T	gid,
		Vertex< VID_T > &	v
	)		const

inline

Convert from global id to an outer vertex handle.

Parameters

gid	Input global id.
v	Output vertex handle.

Returns: True if exists an outer vertex of this fragment with global id as gid, false otherwise.

◆ OuterVertices()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

const outer_vertices_t & grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::OuterVertices ( ) const

inline

Returns the vertex range of outer vertices in this fragment.

Returns: The vertex range of outer vertices in this fragment.

◆ SetData()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

virtual void grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::SetData	(	const Vertex< VID_T > &	v,
		const VDATA_T &	val
	)

pure virtual

Set the data of a vertex.

Parameters

v	Input vertex.
val	Data to write.

Attention: This will only be applied locally, won't sync on other mirrors globally.

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.

◆ Vertex2Gid()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

vid_t grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::Vertex2Gid ( const vertex_t & v ) const

inline

Convert from vertex handle to its global id.

Parameters

v	Input vertex handle.

Returns: Global id of the vertex.

◆ Vertices()

template<typename OID_T , typename VID_T , typename VDATA_T , typename EDATA_T , typename TRAITS_T >

const vertices_t & grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >::Vertices ( ) const

inline

Get all vertices referenced to this fragment.

Returns: A vertex set can be iterate on.

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ fid()

◆ fnum()

◆ GetData()

◆ GetFragId()

◆ GetId()

◆ GetIncomingAdjList() [1/2]

◆ GetIncomingAdjList() [2/2]

◆ GetIncomingInnerVertexAdjList() [1/2]

◆ GetIncomingInnerVertexAdjList() [2/2]

◆ GetIncomingOuterVertexAdjList() [1/2]

◆ GetIncomingOuterVertexAdjList() [2/2]

◆ GetInnerVertex()

◆ GetInnerVertexGid()

◆ GetInnerVertexId()

◆ GetInnerVerticesNum()

◆ GetLocalInDegree()

◆ GetLocalOutDegree()

◆ GetOuterVertexGid()

◆ GetOuterVertexId()

◆ GetOuterVerticesNum()

◆ GetOutgoingAdjList() [1/2]

◆ GetOutgoingAdjList() [2/2]

◆ GetOutgoingInnerVertexAdjList() [1/2]

◆ GetOutgoingInnerVertexAdjList() [2/2]

◆ GetOutgoingOuterVertexAdjList() [1/2]

◆ GetOutgoingOuterVertexAdjList() [2/2]

◆ GetTotalVerticesNum()

◆ GetVertex()

◆ GetVerticesNum()

◆ Gid2Vertex()

◆ HasChild()

◆ HasParent()

◆ IEDests()

◆ InnerVertexGid2Vertex()

◆ InnerVertices()

◆ IOEDests()

◆ IsInnerVertex()

◆ IsOuterVertex()

◆ OEDests()

◆ OuterVertexGid2Vertex()

◆ OuterVertices()

◆ SetData()

◆ Vertex2Gid()

◆ Vertices()
