grape::FragmentBase< OID_T, VDATA_T, EDATA_T > Class Template Reference

FragmentBase is the base class for fragments. More...

#include <fragment_base.h>

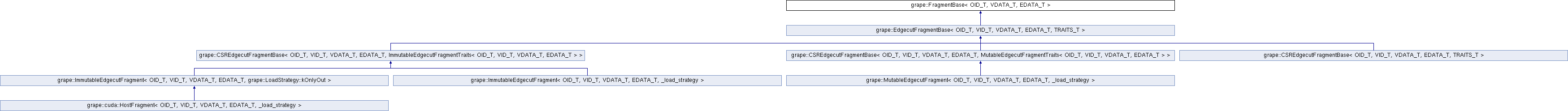

Inheritance diagram for grape::FragmentBase< OID_T, VDATA_T, EDATA_T >:

Public Member Functions
bool	directed () const
	Returns true if the fragment is directed, false otherwise.
fid_t	fid () const
	Returns the ID of this fragment.
fid_t	fnum () const
	Returns the number of fragments.
virtual size_t	GetEdgeNum () const =0
	Returns the number of edges in this fragment.
virtual size_t	GetVerticesNum () const =0
	Returns the number of vertices in this fragment.
virtual size_t	GetTotalVerticesNum () const =0
	Returns the number of vertices in the entire graph.
virtual void	PrepareToRunApp (const CommSpec &comm_spec, PrepareConf conf, const ParallelEngineSpec &pe_spec)=0
	For some kind of applications, specific data structures will be generated.

Protected Member Functions
void	init (fid_t fid, fid_t fnum, bool directed)
template<typename IOADAPTOR_T >
void	serialize (std::unique_ptr< IOADAPTOR_T > &writer)
template<typename IOADAPTOR_T >
void	deserialize (std::unique_ptr< IOADAPTOR_T > &reader)

Protected Attributes
fid_t	fid_
fid_t	fnum_
bool	directed_

Detailed Description

template<typename OID_T, typename VDATA_T, typename EDATA_T>
class grape::FragmentBase< OID_T, VDATA_T, EDATA_T >

FragmentBase is the base class for fragments.

Note

: The pure virtual functions in the class work as interfaces, instructing sub-classes to implement. The override functions in the derived classes would be invoked directly, not via virtual functions.

Template Parameters

OID_T
VDATA_T
EDATA_T

Member Function Documentation

directed()

template<typename OID_T , typename VDATA_T , typename EDATA_T >

bool grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::directed ( ) const

inline

Returns true if the fragment is directed, false otherwise.

Returns

true if the fragment is directed, false otherwise.

fid()

template<typename OID_T , typename VDATA_T , typename EDATA_T >

fid_t grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::fid ( ) const

inline

Returns the ID of this fragment.

Returns

The ID of this fragment.

fnum()

template<typename OID_T , typename VDATA_T , typename EDATA_T >

fid_t grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::fnum ( ) const

inline

Returns the number of fragments.

Returns

The number of fragments.

GetEdgeNum()

template<typename OID_T , typename VDATA_T , typename EDATA_T >

virtual size_t grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::GetEdgeNum ( ) const

pure virtual

Returns the number of edges in this fragment.

Returns

The number of edges in this fragment.

Implemented in grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::ImmutableVertexcutFragment< uint64_t, EmptyType, EmptyType >.

GetTotalVerticesNum()

template<typename OID_T , typename VDATA_T , typename EDATA_T >

virtual size_t grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::GetTotalVerticesNum ( ) const

pure virtual

Returns the number of vertices in the entire graph.

Returns

The number of vertices in the entire graph.

Implemented in grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::ImmutableVertexcutFragment< uint64_t, EmptyType, EmptyType >.

GetVerticesNum()

template<typename OID_T , typename VDATA_T , typename EDATA_T >

virtual size_t grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::GetVerticesNum ( ) const

pure virtual

Returns the number of vertices in this fragment.

Returns

The number of vertices in this fragment.

Implemented in grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, grape::EdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, and grape::ImmutableVertexcutFragment< uint64_t, EmptyType, EmptyType >.

PrepareToRunApp()

template<typename OID_T , typename VDATA_T , typename EDATA_T >

virtual void grape::FragmentBase< OID_T, VDATA_T, EDATA_T >::PrepareToRunApp ( const CommSpec &  comm_spec, PrepareConf  conf, const ParallelEngineSpec &  pe_spec  )

pure virtual

For some kind of applications, specific data structures will be generated.

Parameters

strategy
need_split_edge

Implemented in grape::cuda::HostFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, TRAITS_T >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, ImmutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, grape::CSREdgecutFragmentBase< OID_T, VID_T, VDATA_T, EDATA_T, MutableEdgecutFragmentTraits< OID_T, VID_T, VDATA_T, EDATA_T > >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >, grape::ImmutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, grape::LoadStrategy::kOnlyOut >, grape::ImmutableVertexcutFragment< uint64_t, EmptyType, EmptyType >, and grape::MutableEdgecutFragment< OID_T, VID_T, VDATA_T, EDATA_T, _load_strategy >.
